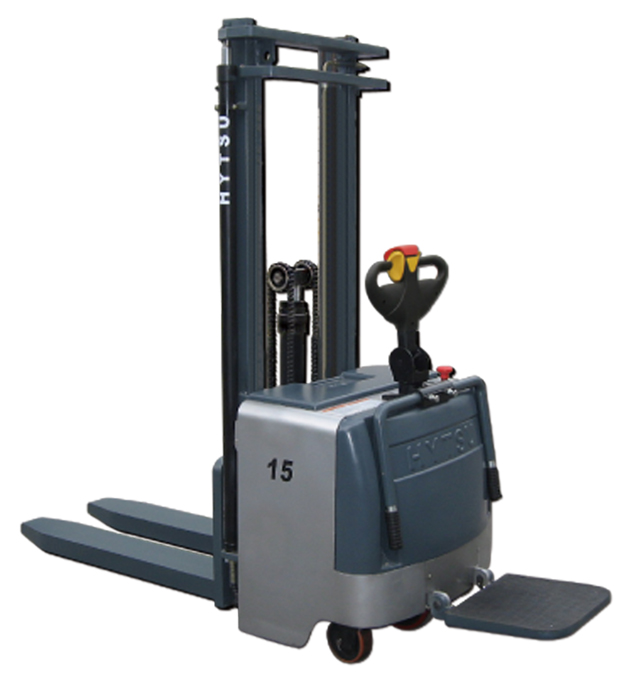

Fork Over Type Heavy Duty Electric Stacker
| Model |
|
XRS10
|
XRS15
|
| Load Capacity |
kg/lb
|
1000 / 2200
|
1500 / 3300
|
| Load Center |
mm/inch
|
600 / 23.6
|
|
| Power Type |
|
Battery
|
|
| Control Type |
|
Ride-on type
|
|
| Standard Lifting Height |
mm/inch
|
3000 / 118
|
|
| Fork Size ( L ) |
mm/inch
|
1130 / 44.5
|
|
| Fork Overall Width |
mm/inch
|
540or560 / 21.3or22
|
|
| Overall Length |
mm/inch
|
2320 / 91.3
|
|
| Overall Width |
mm/inch
|
850 / 33.5
|
|
| Turning Radius (Outside) |
mm/inch
|
1350 / 53
|
|
| Basic Right Angle Stacking Aisle Width (Add Load Length an clearance) |
mm/inch
|
1500 / 59
|
|
| Total Weight |
kg/lb.
|
780 / 1718
|
|
| Axle Base |
mm/inch
|
1330 / 52.4
|
|
| Brake |
|
Electric Wet Disk
|
|
| Battery (Voltage/Capacity) |
V/Ah.5hr
|
24V / 280Ah
(12pcs*2V Single battery with 77*158*252mm) |
|
| Charger |
|
24V / 50A
|
|
| Control System |
|
CURTIS
|
|
*Mast Options:
(a) single mast :SM160(1600mm);
(b)dual mast: VM250(2500mm);VM350(3500mm);
(c)full free dual mast:VFM300(3000mm);VFM350(3500mm);
(d)full free triplex mast:VFHM300 (3000mm);VFHM330;VFHM350;VFHM400;VFHM450;VFHM500;VFHM550;VFHM600
